Steatite Shoulder bushings

code BOC01

STEATITE MALE BUSHINGS

Steatite Bushings are used for insulation of electric parts of devices and appliances that work at high temperature. This ceramic material maintains dimensional stability and insulating capabilities even under heat stress. These steatite male bushes are used to insulate conductors in devices with a high temperature. Steatite shoulder bushings Designates Matching Counter Bushing

Material	Steatite C221
Temperature	Up to 1000°C
Electric strength	Minimum 10 kV/mm

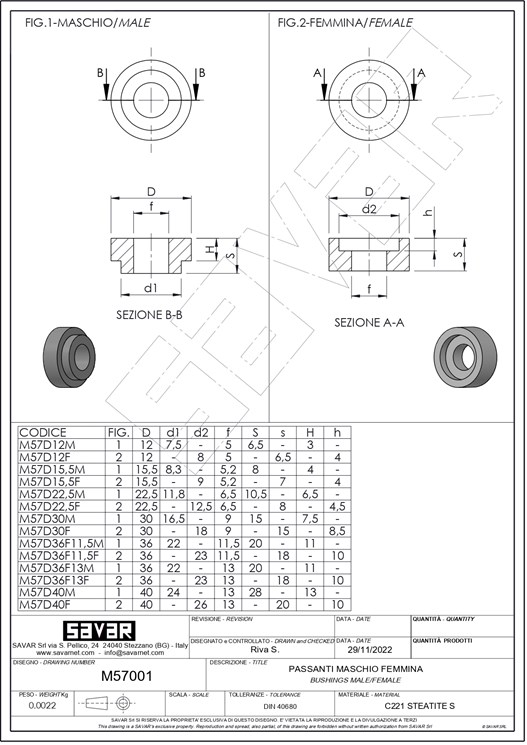

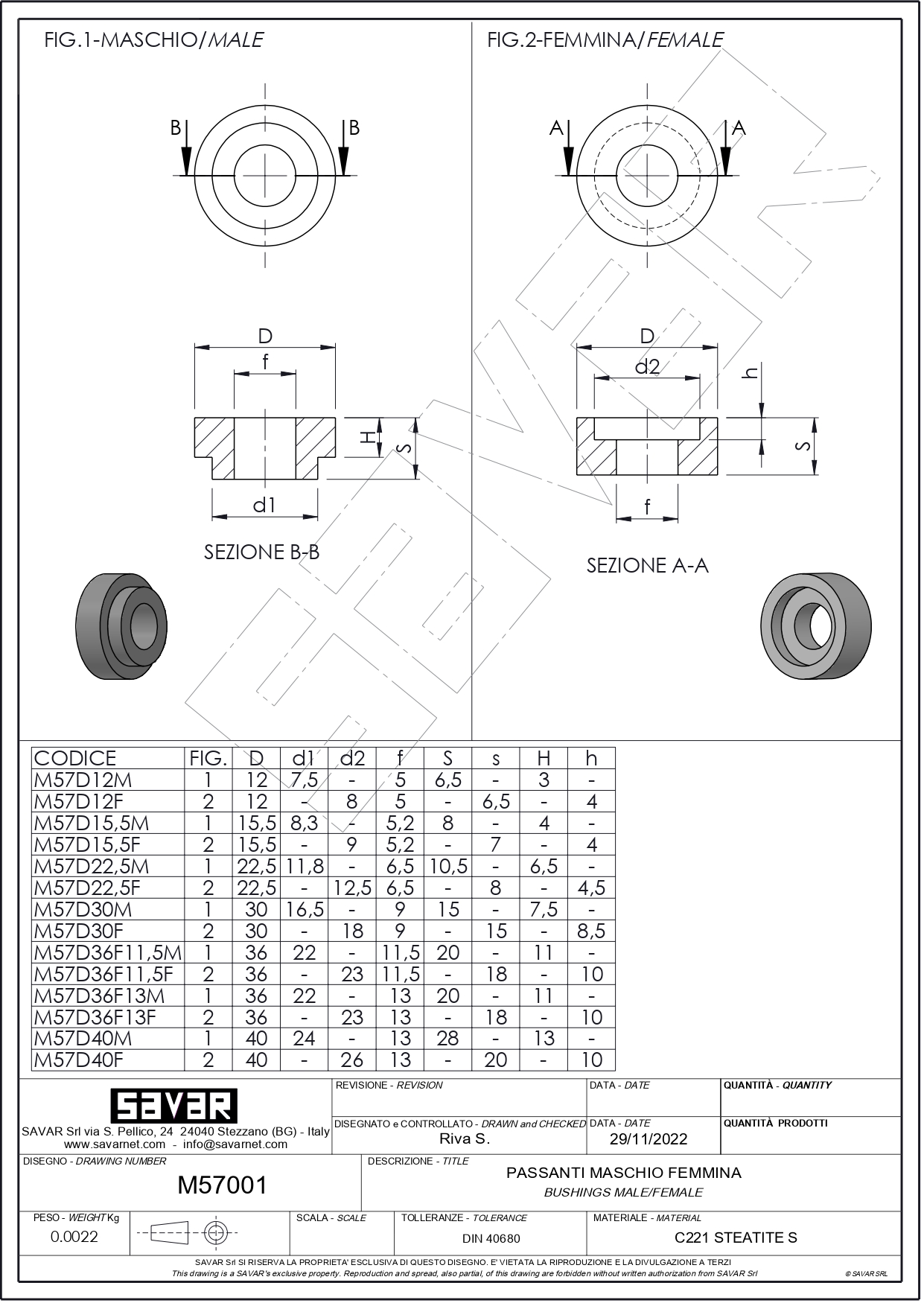

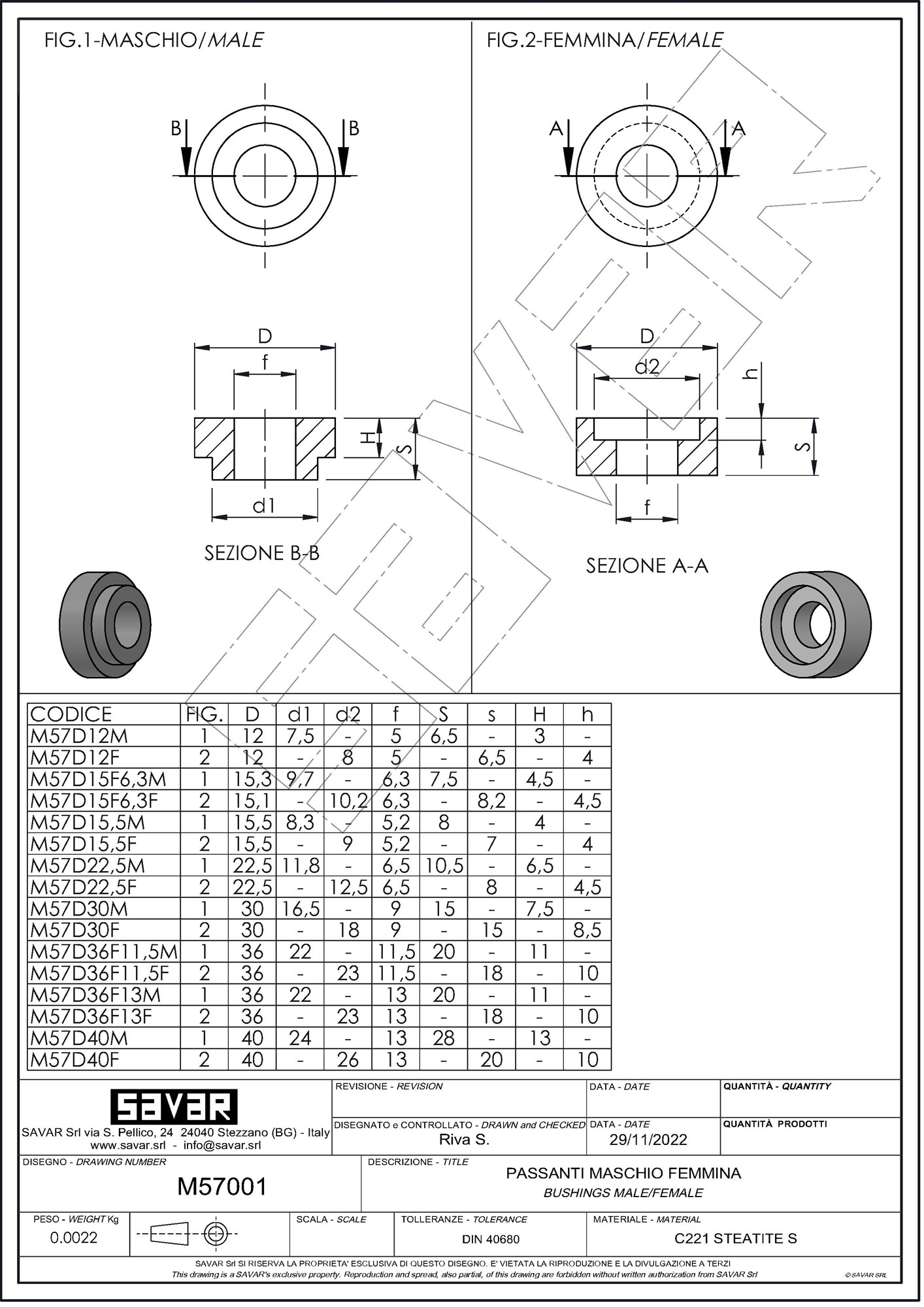

Disegno tecnico M57001 - Technical drawing M57001.pdf (184 kb)

Do you need custom products?

Technical Ceramic designs and manufactures custom products to your specifications

Request custom product
