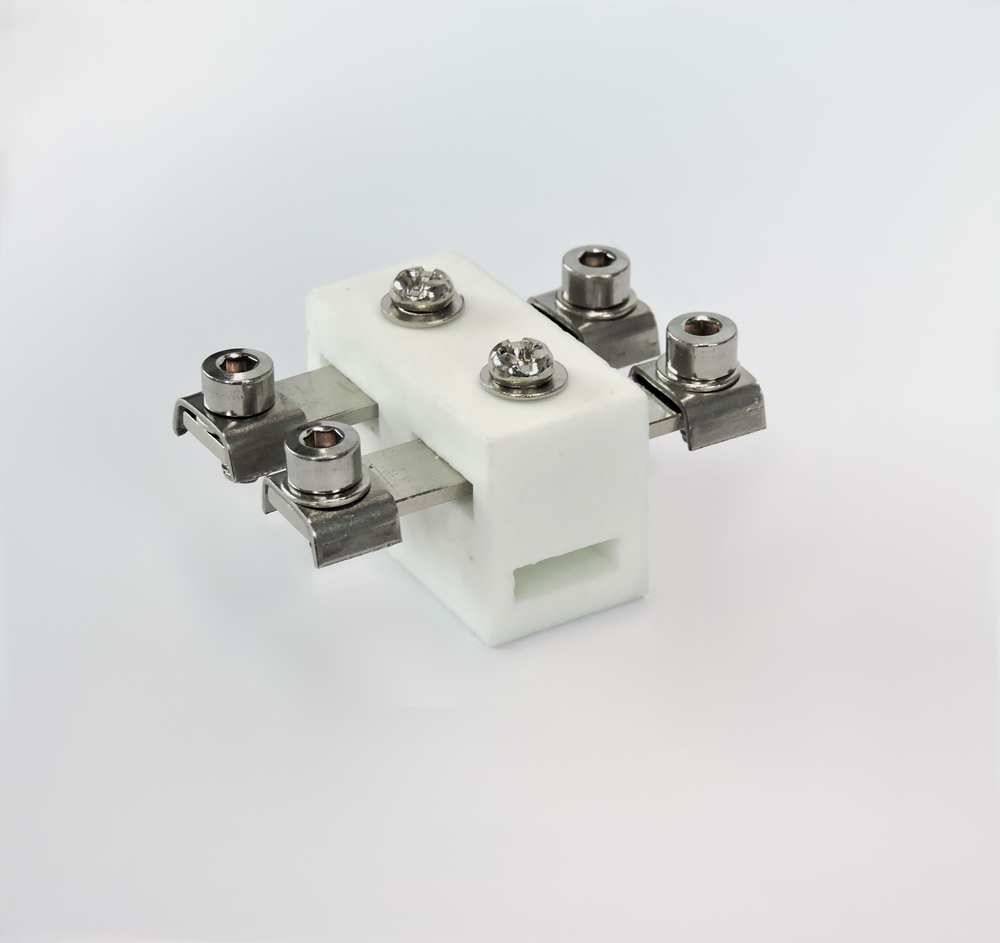

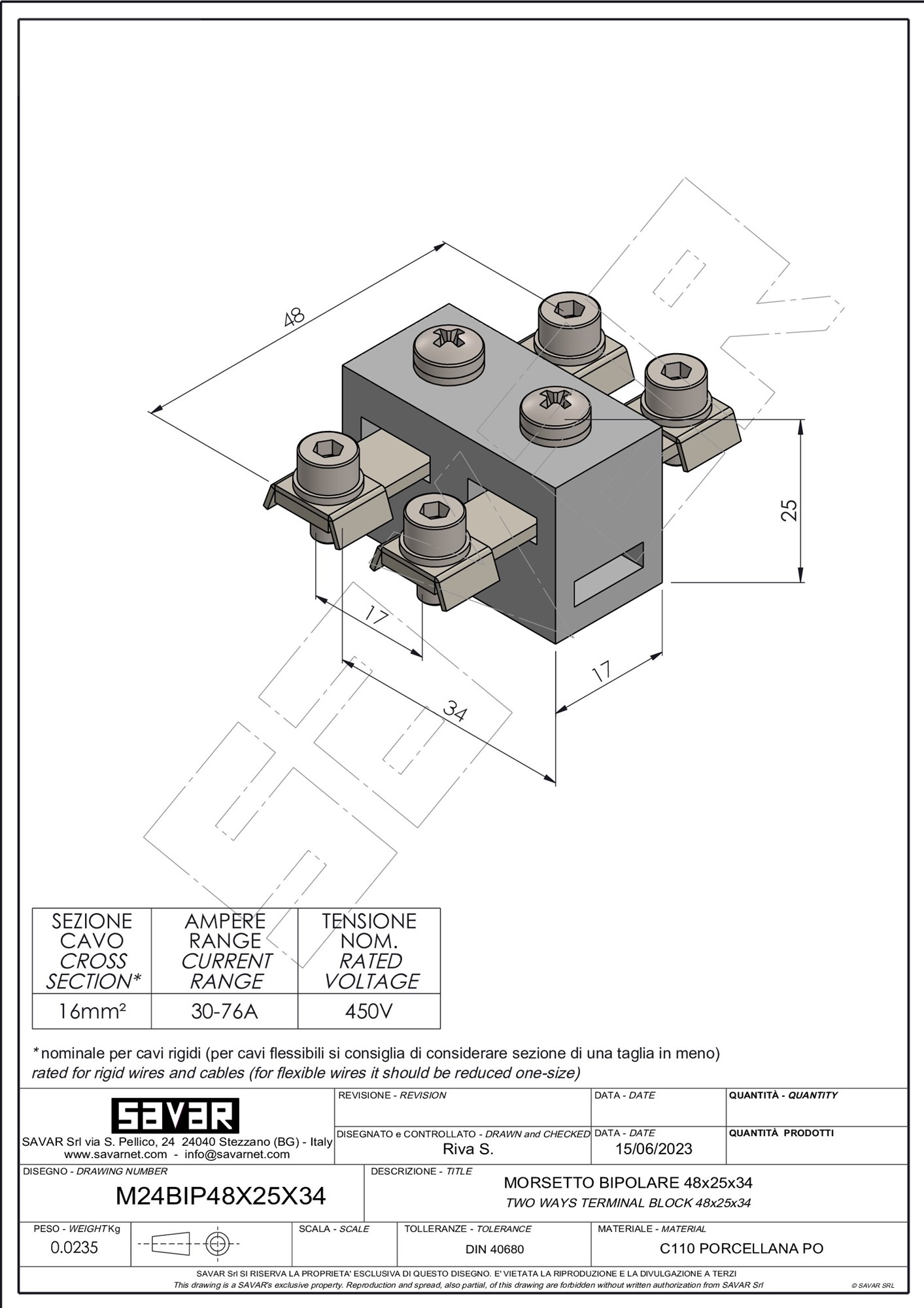

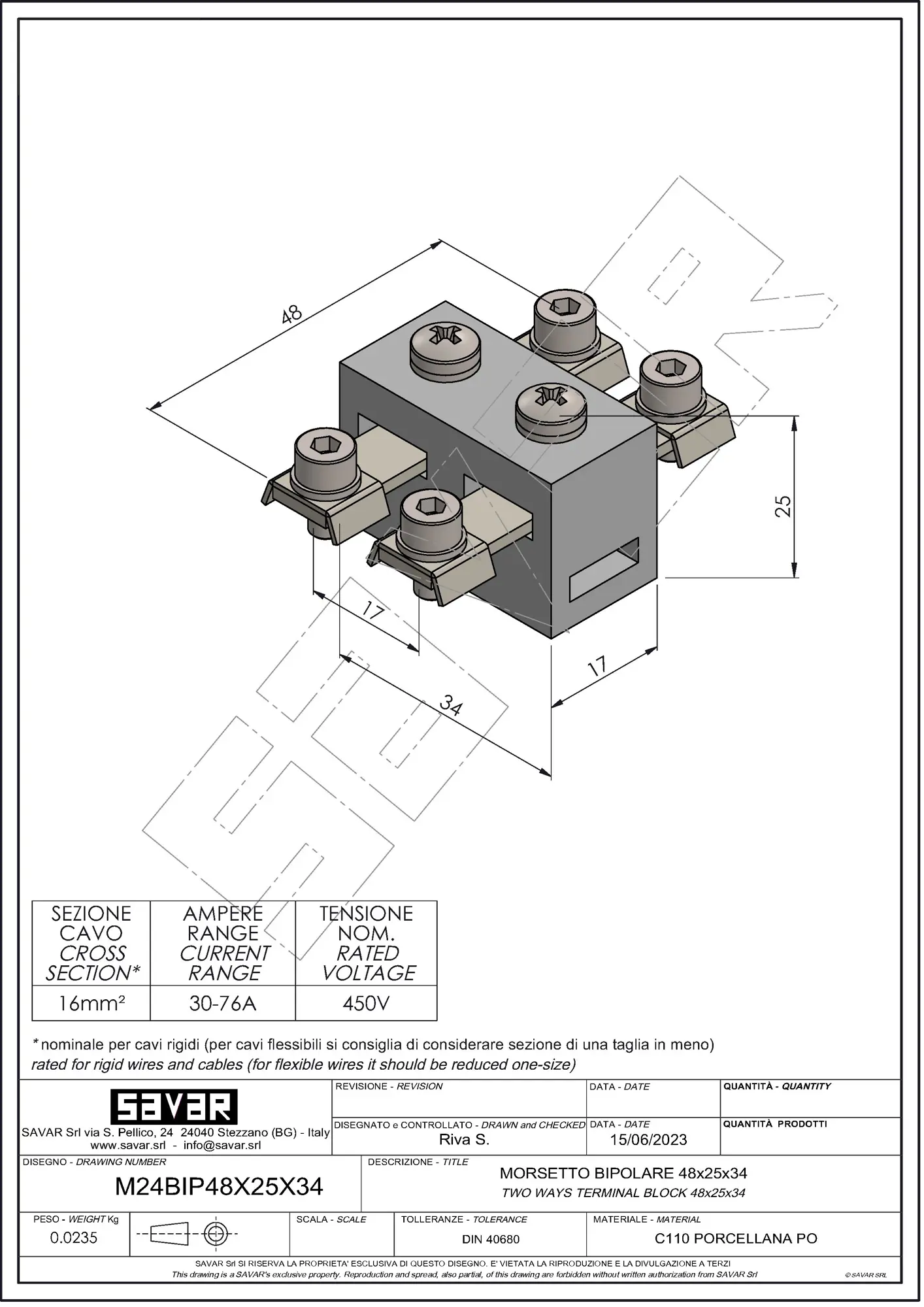

Terminal block two ways 48X25X34

code M24BIP48X25X34

Terminal blocks two ways (pins) in technical ceramics. Impressive properties and resistance to high temperature of ceramic enable to apply this type of terminal blocks in electrical devices for both industry as well as domestic users. In industry are used in extremely high temperature applications such as furnaces, heaters, process equipment and machinery. These terminal blocks type allows the use of all cable termination ends, good visualization of the insertion of conductors (as ring and fork terminals). Inserts are in nickel plated copper

and screws are in stainless steel.





Housing material Technical ceramic C110
Inserts material Nickel plated copper
Screws material Stainless steel
Temperature of use  -20°C ÷ 500°C
Rated Voltage  500 Volts
