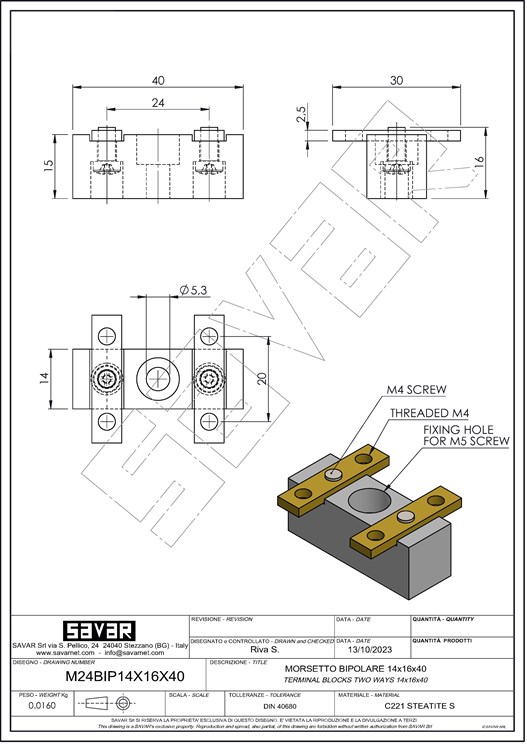

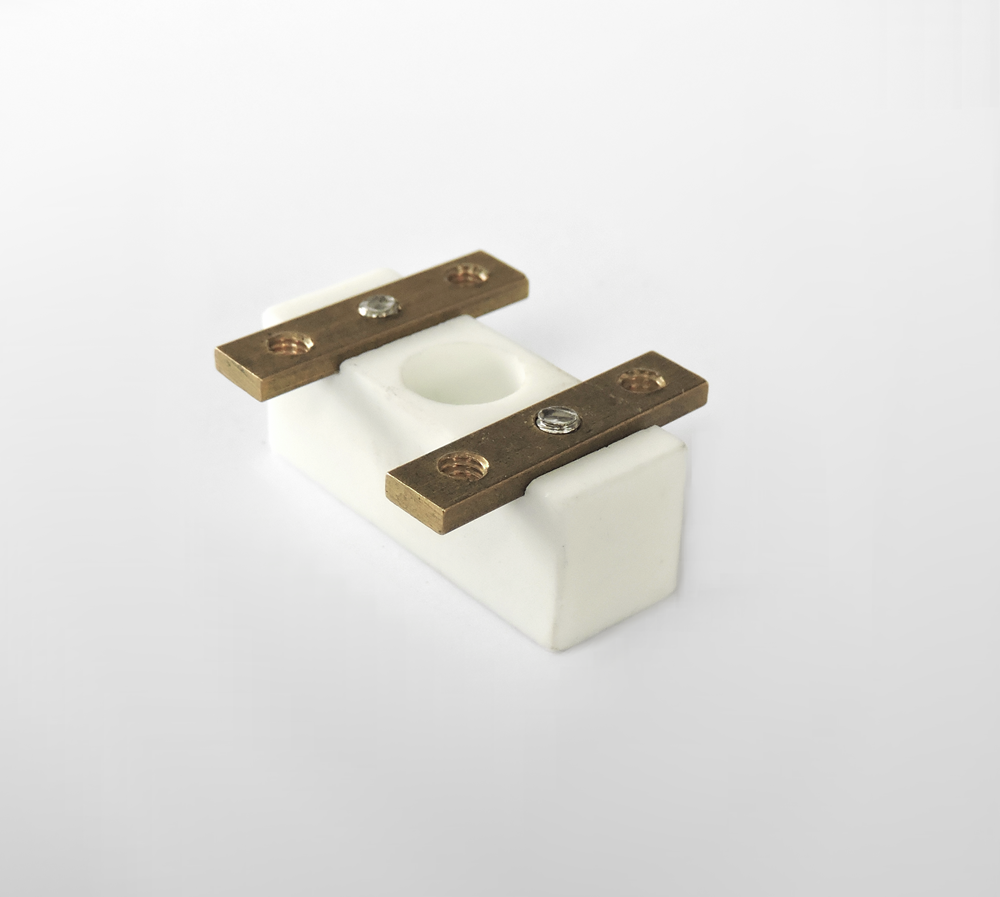

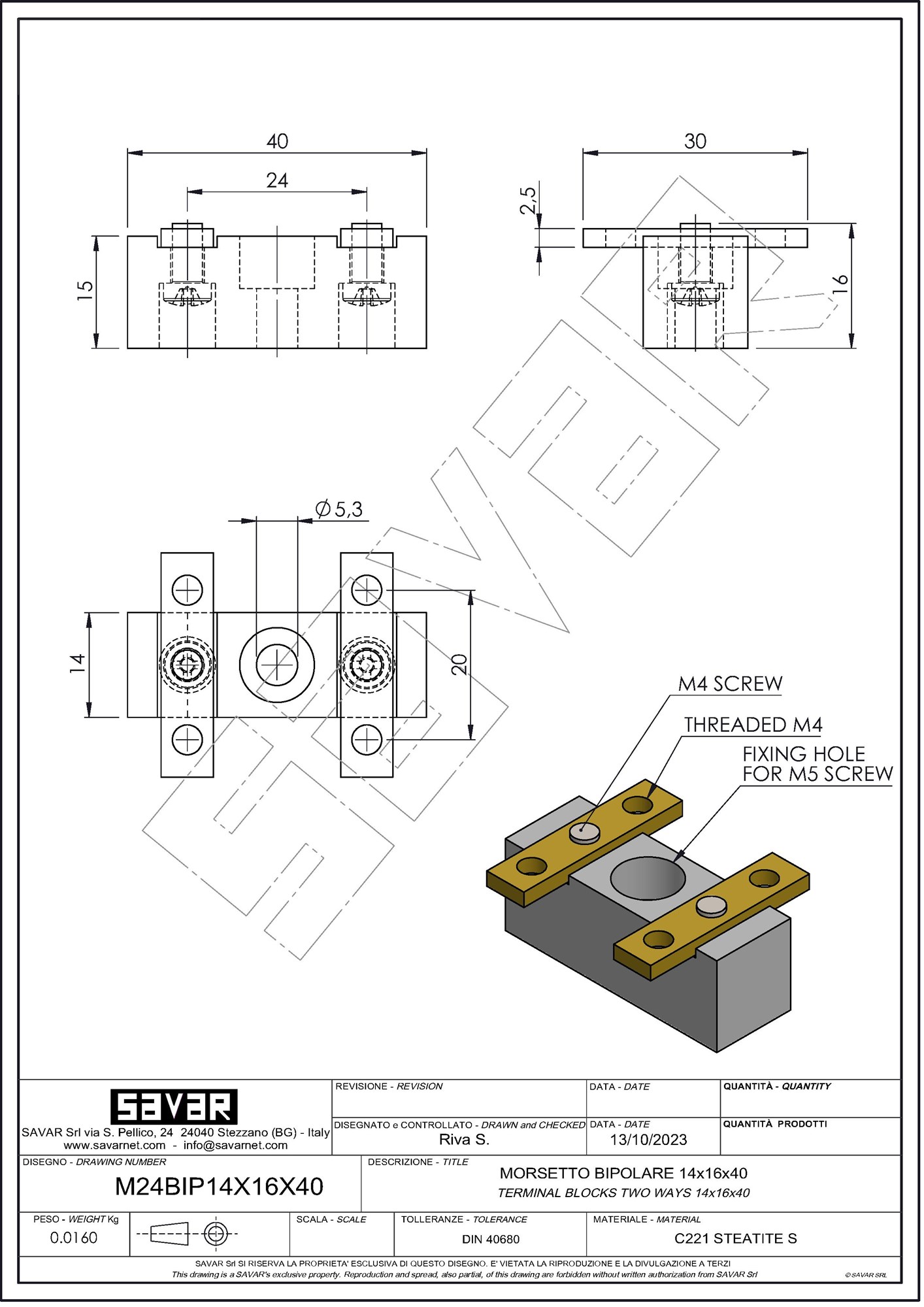

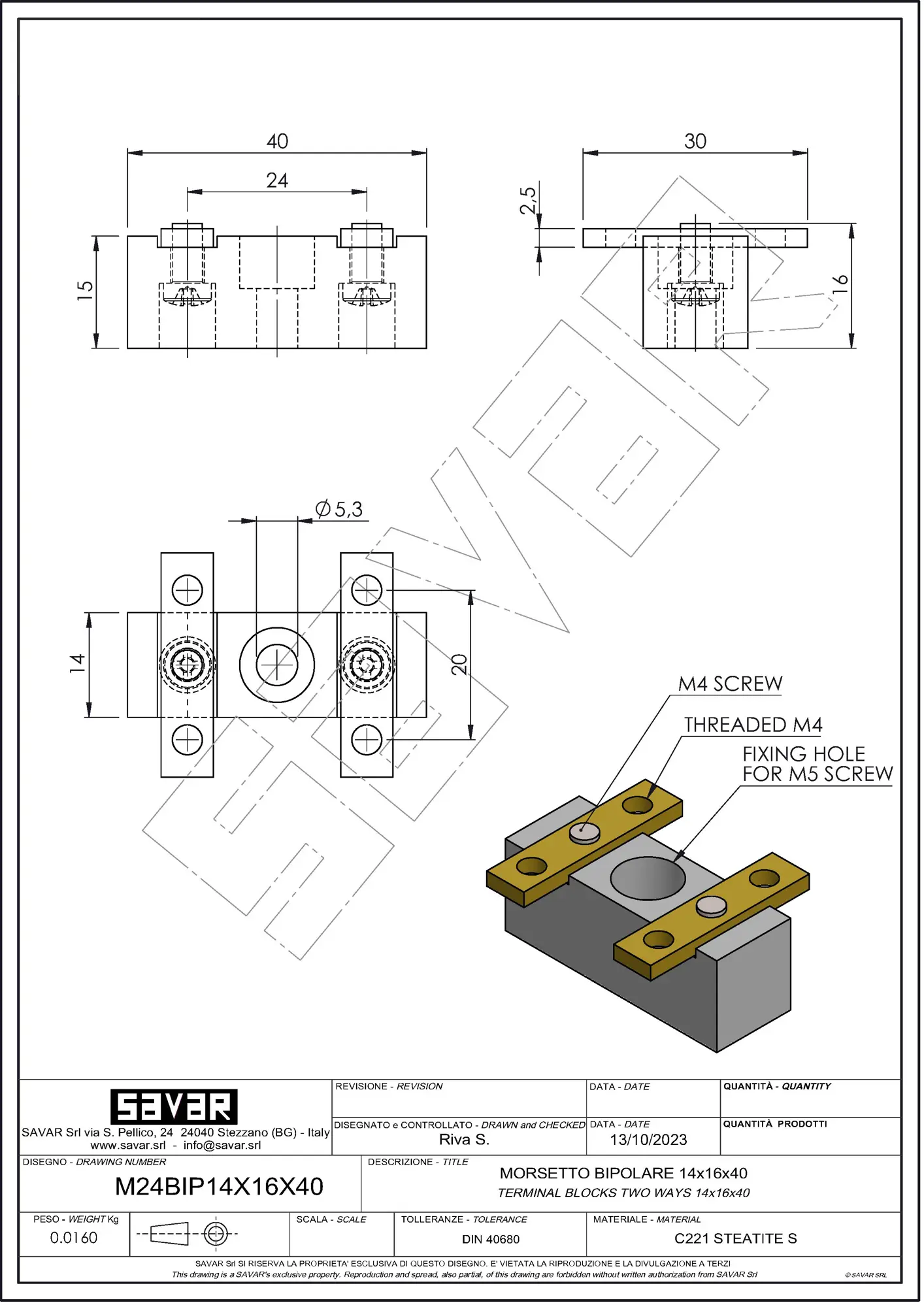

Terminal block two way 14x16x40

code M24BIP14X16X40

Terminal blocks two ways (pins) in technical ceramics. Impressive properties and resistance to high temperature of ceramic enable to apply this type of terminal blocks in electrical devices for both industry as well as domestic users. In industry are used in extremely high temperature applications such as furnaces, heaters, process equipment and machinery. These terminal blocks type allows the use of all cable termination ends, good visualization of the insertion of conductors (as ring and fork terminals).





Housing material Technical ceramic C221
Screws material Galvanised steel
Shunts material Brass
Temperature of use  -20°C ÷ 500°C
Rated Voltage  450 Volts
