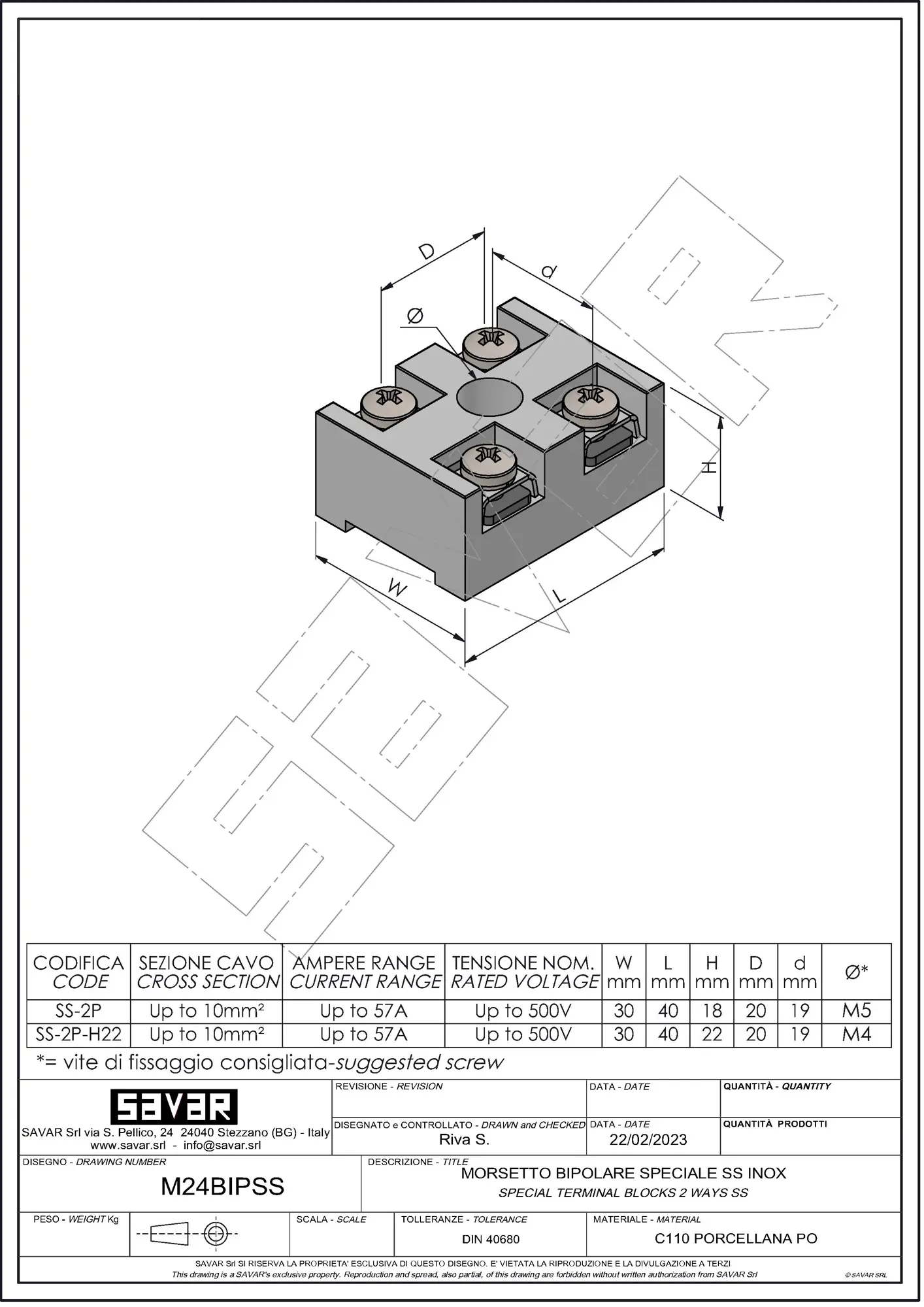

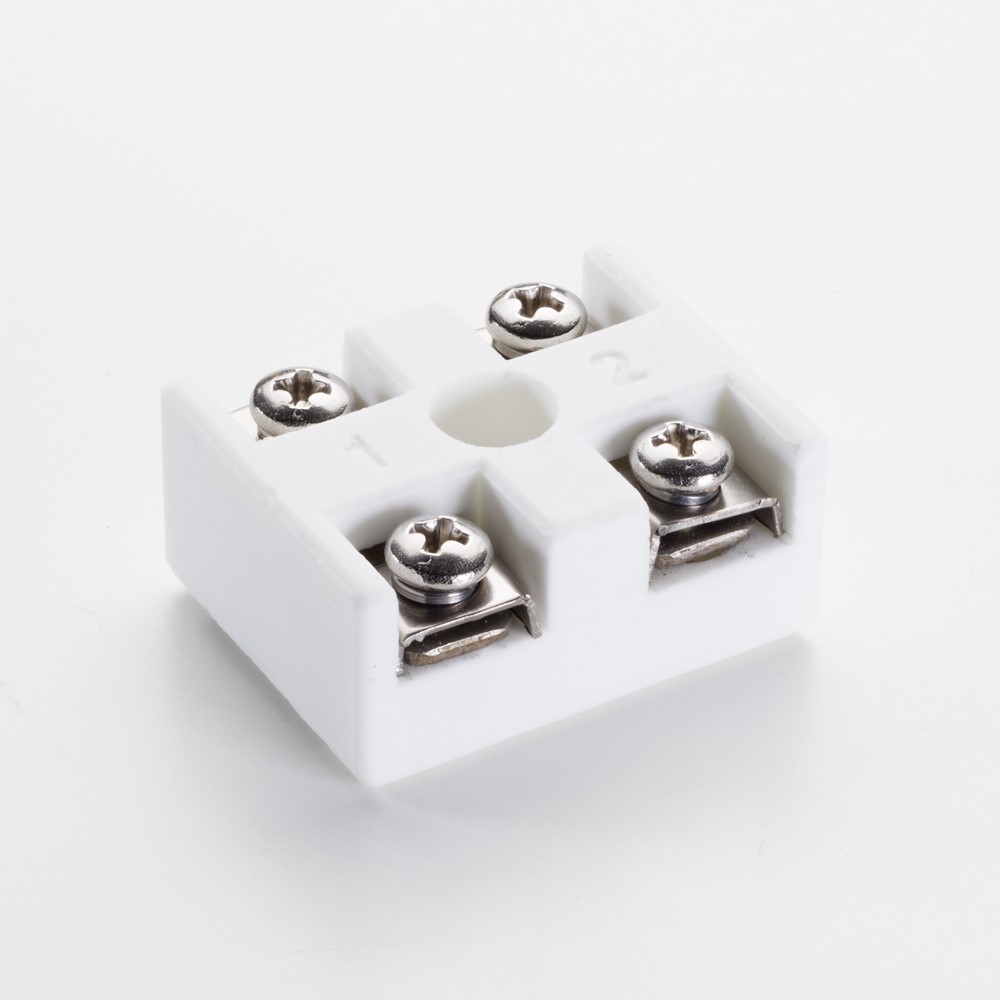

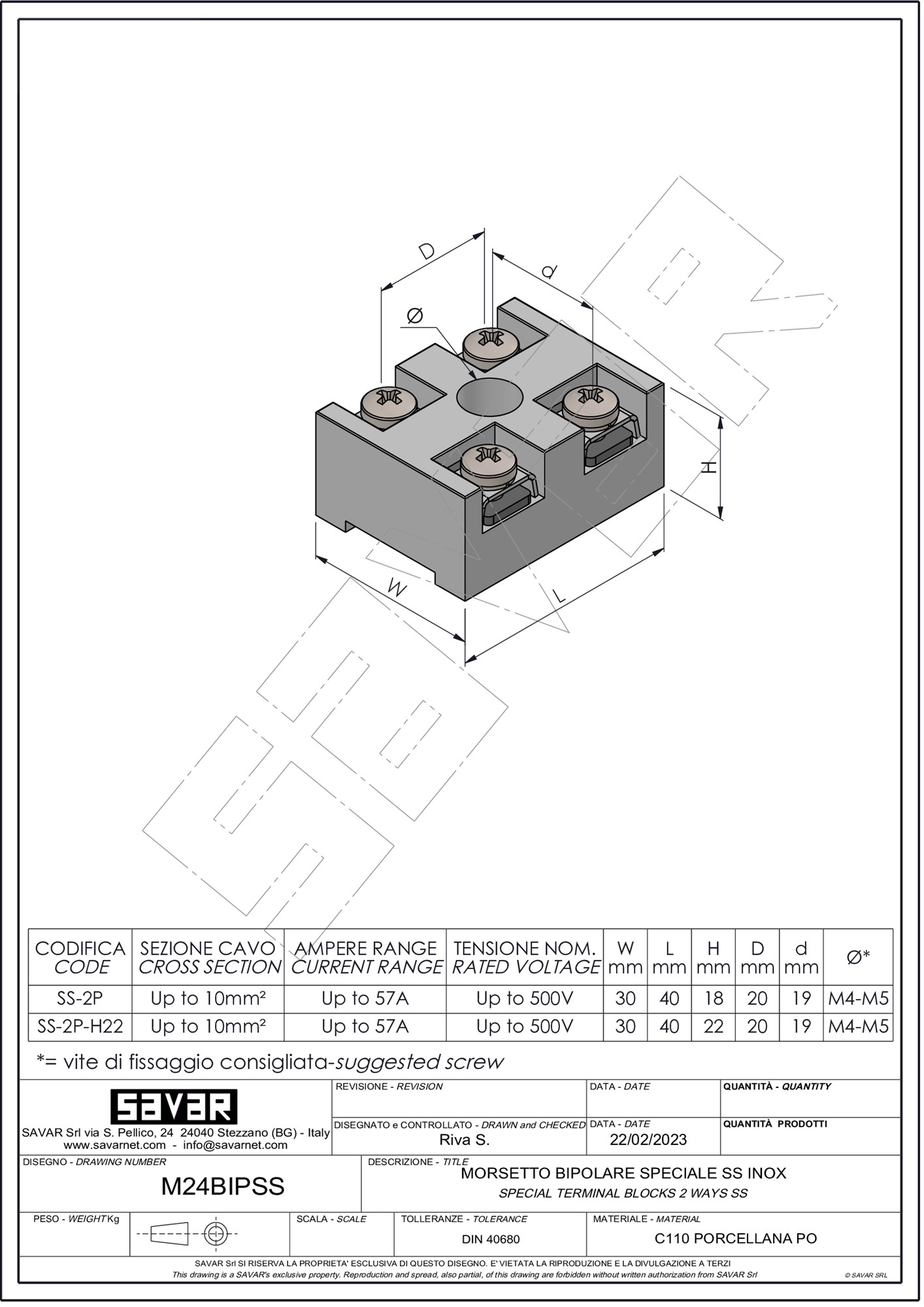

Terminal block two ways SS

code BIP-SS

Terminal blocks two ways (pins) in technical ceramics. Impressive properties and resistance to high temperature of ceramic enable to apply this type of terminal blocks in electrical devices for both industry as well as domestic users. In industry are used in extremely high temperature applications such as furnaces, heaters, process equipment and machinery. These special terminal blocks type SS allows the use of all cable termination ends, good visualization of the insertion of conductors (as ring and fork terminals). Inserts and screws are in stainless steel.





Housing material Technical ceramic C110
Inserts material Stainless steel
Screws material Stainless steel
Temperature of use  -20°C ÷ 500°C
Rated Voltage  500 Volts
