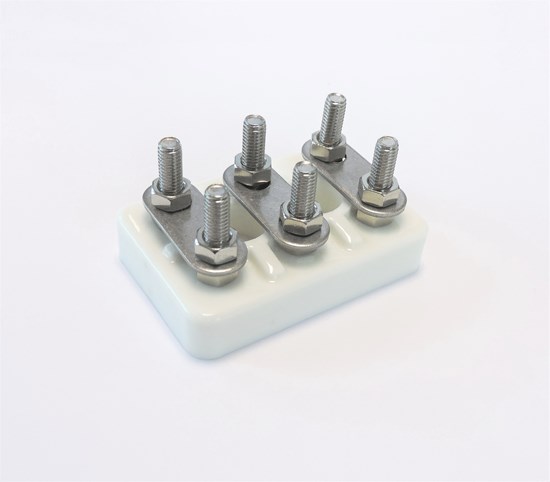

Motor terminal block three-phase 100A

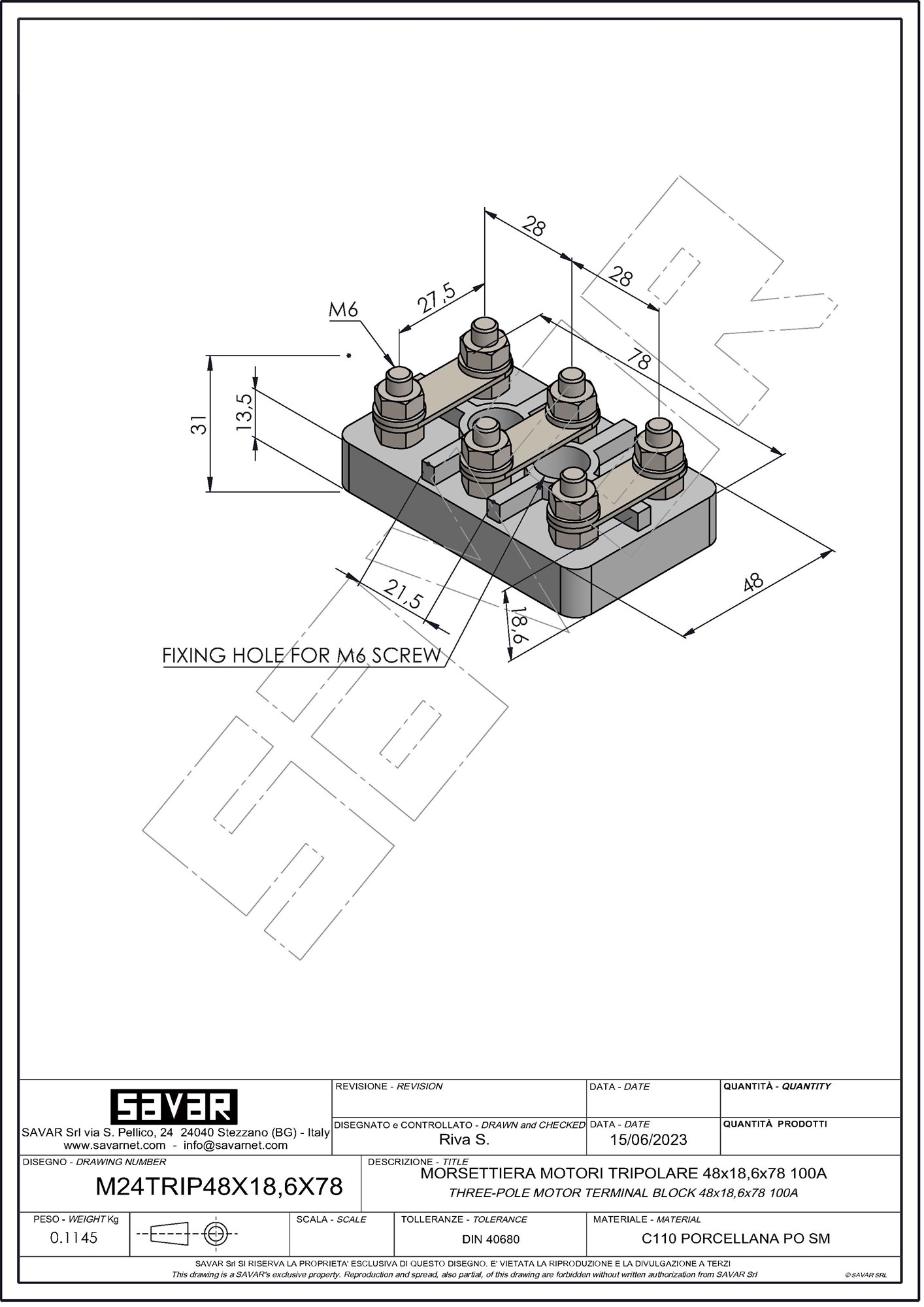

code M24TRIP48X18,6X78

These terminals allow the connection star-delta three-phase motors or two separate motors. Thanks to the excellent thermal resistance properties conferred by ceramics, they find application in machinery such as electric ovens, motors with high operating temperatures, equipment where very high temperature resistance is required, such as smoke and heat extraction fans. These terminal blocks are also used for star-delta switching of three-phase heaters.





Housing material Technical ceramic C110
Inserts material Galvanised steel
Screws material Stainless steel
Temperature of use  -20°C ÷ 500°C
Rated Voltage  500 Volts
Do you need custom products?
Technical Ceramic designs and manufactures custom products to your specifications
