Ceramic post insulator M10

code B28ISO50X50

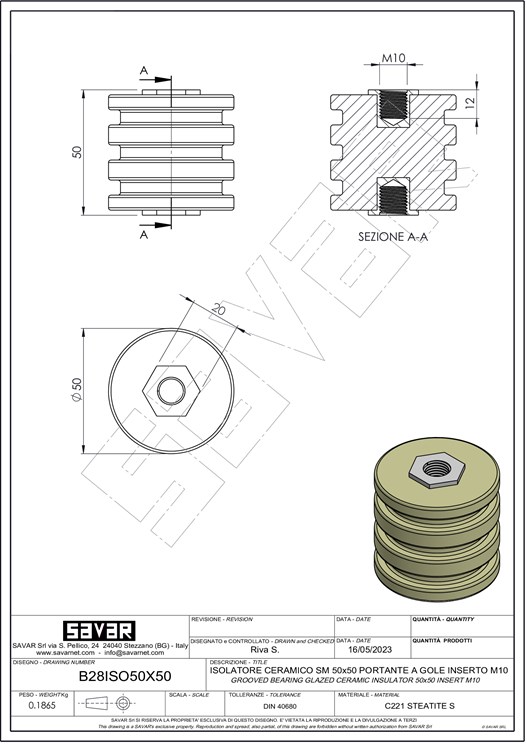

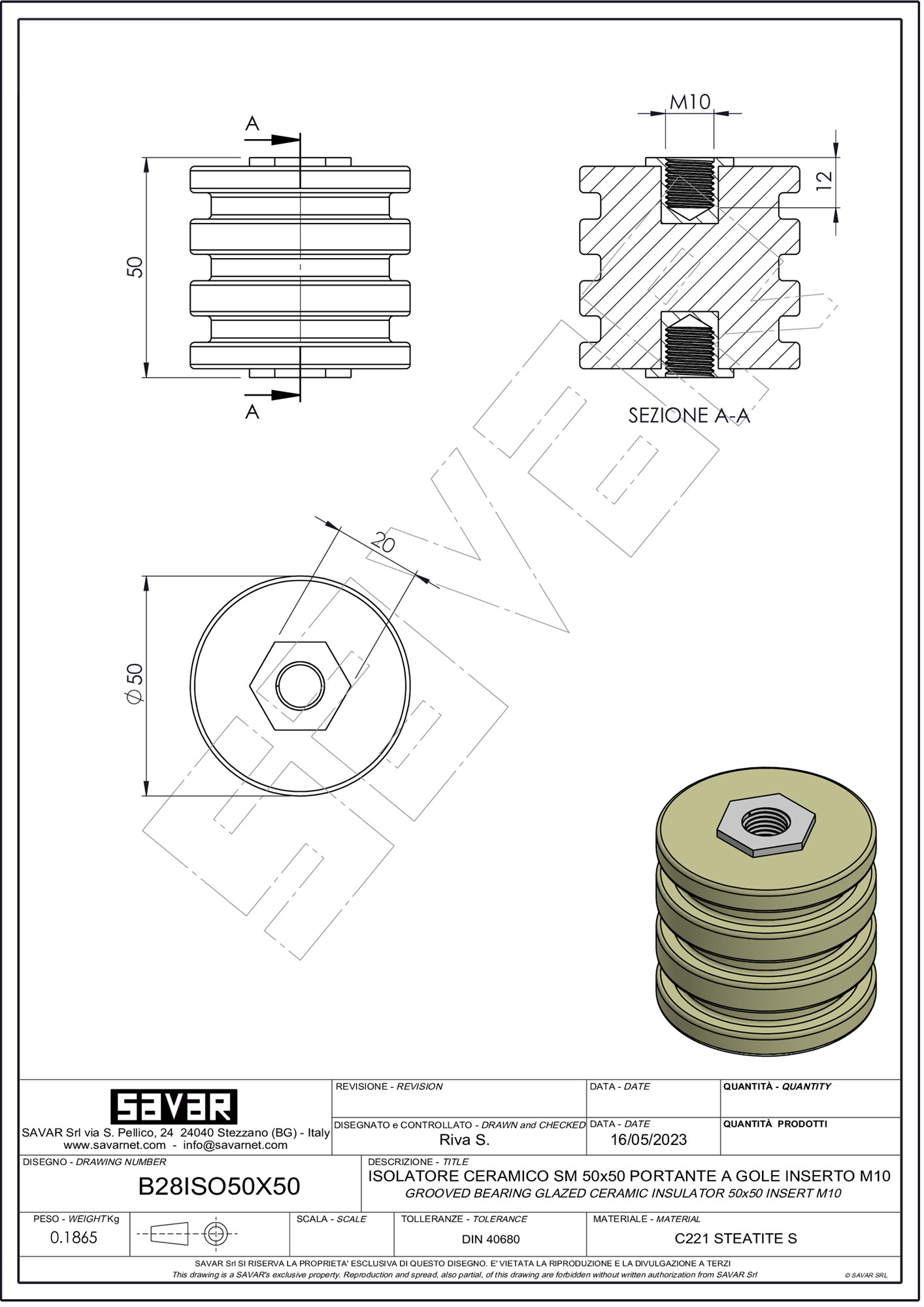

CERAMIC POST INSULATOR S50 M10

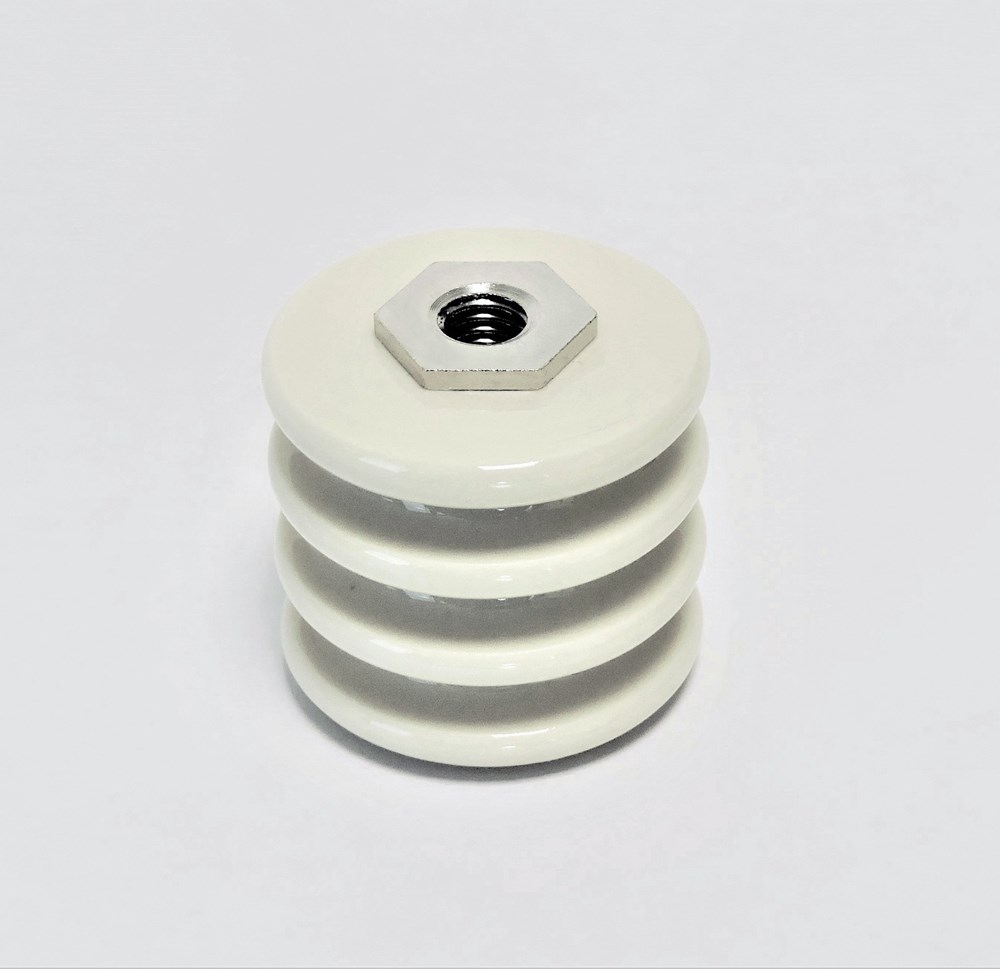

Ceramic post insulator with M10 nickel-plated brass inserts.

Ideal solution for equipment exposed to highly aggressive environments, for indoor and outdoor environments.

The glazed surface guarantees a fast and accurate cleaning.

The ceramic material offers the maximum guarantee against the risk of fire spreading.





Housing material Technical ceramic C221
Inserts material Nickel plated steel
Temperature of use  -50°C ÷ 250°C
Creepage line lenght 120 mm
Dielectric test at dry condition 14kV-60s-50Hz



Do you need custom products?
Technical Ceramic designs and manufactures custom products to your specifications
